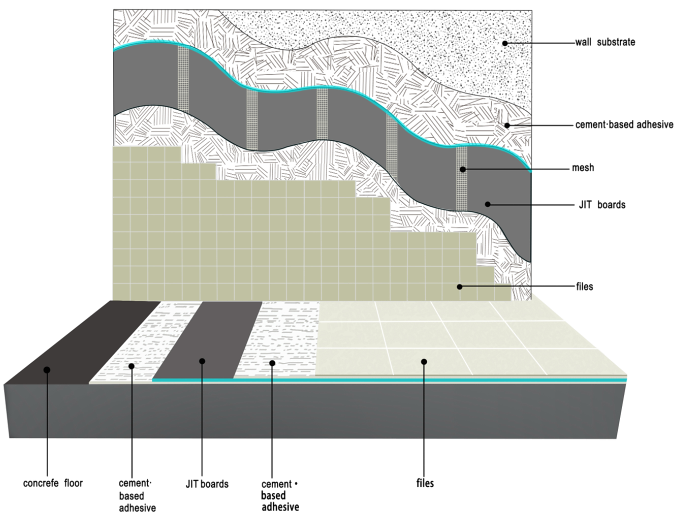

JIT BOARDS-Concrete floors
When installed over concrete floors,JIT building boards function as a crack-isolation membrane,as cracks are not likely to transfer through the polystyrene core of the boards.the polystyrene foam also acts as a moisture barrier,thus,when the seams are propely treated,the system is 100% waterproof.The JIT boards are also used as thermal insulation,especially when installed underneath electric heating and floor warming system.
When installed over concrete floors,JIT building boards function as a crack-isolation membrane,as cracks are not likely to transfer through the polystyrene core of the boards.the polystyrene foam also acts as a moisture barrier,thus,when the seams are propely treated,the system is 100% waterproof.The JIT boards are also used as thermal insulation,especially when installed underneath electric heating and floor warming system.

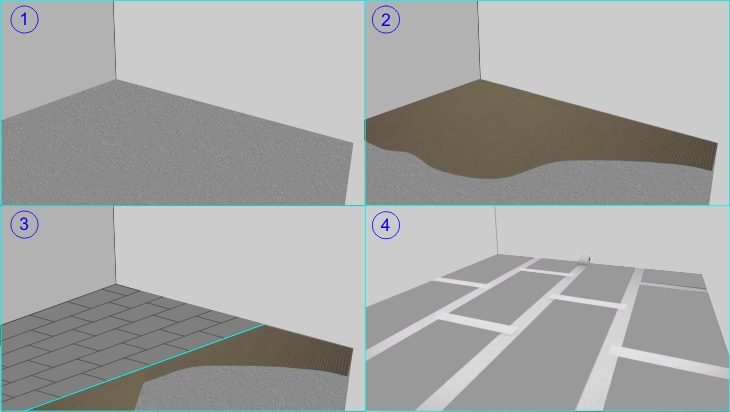

STEP1:
Make sure the concrete floor is fully cured and free of debris,oil or waxes.
STEP2:
Modified mortar,combed through with a notch trowel,will the provide a ribbed bed on which JIT boards will be laid.
STEP3:
Push JIT boards onto the floor,all boards are dislocation arrangement
STEP4:
Tape all joints with self-adhesive mesh in dry areas.Waterproof tape to be appiled over all joints if a waterprrof installation is required. Set you tile now.
