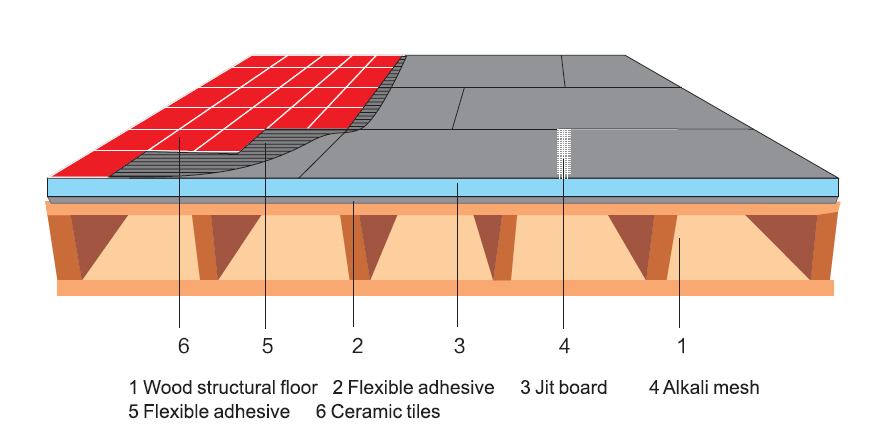

JIT boards-Timber floors
JIT thermal construction boards provide excellent substrates for inerior floors.
When applied over a wooden substrate,JIT board act as a waterproof membrane and create a superior bonding surface for ceramic tile.

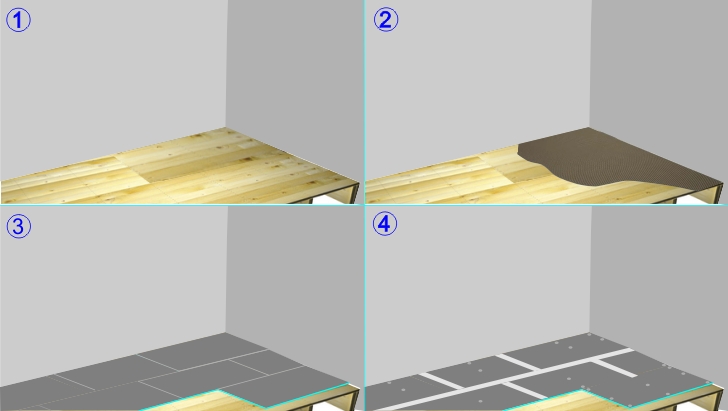

STEP1:
Make sure the timber floor is fully cured and free of debris,oil or waxes.
STEP2:
Modified mortar,combed through with a notch trowel,will the provide a ribbed bed on which JIT boards will be laid.
STEP3:
JIT boards are laid into the mortar,all boards are dislocation arrangement.
STEP4:
After the mortar has set,use a steel screw and washer to fix the board to the timber floor at every 300mm.Make sure the screws embed into the floor by at least 30mm.
Short boards-3 rows of 4 fixings(1 inch in from the edges)
Tape all joints with self-adhesive mesh in dry areas.Waterproof tape to be appiled over all joints if a waterprrof installation is required.
Set you tile now.
